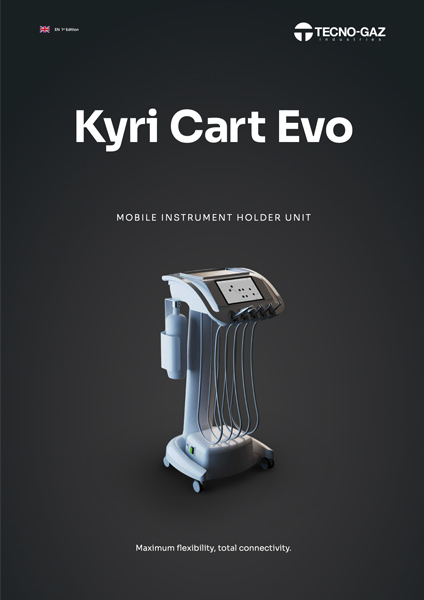

Kyri Cart Evo
Mobile instrument holder unit
Maximum flexibility, total connectivity.
Let’s get in touch!
Enhanced performance
9” colour touchscreen display
New bottle
Integration with Kyri Evo
Technical data
Variable height
Smart pedal Wireless
Full integration with the Kyri Evo chair.
Kyri Evo and Kyri Cart Evo. The integrated solution. Simplify your work and offer a more comfortable experience for your patients with a perfectly connected treatment station.
New 9” colour touchscreen display
Intuitive and aesthetic interface
High-resolution display that improves visibility and control
Every professional can adapt the system to their own operating style: transmission ratios, speed, torque and spray are fully configurable according to the specific requirements of each procedure.
Ability to switch easily from one user to another
Maximum flexibility, total connectivity.
interconnection
Variable connection options:
Direct connection to the Kyri Evo chair
Quick connection box
Ambidextrous connection option
Smart pedal
Improve your ergonomics by using hands-free operation. Wireless or wired. Single pedal Kyri Cart Evo / Kyri Evo
** The NOK pedal is available.
Variable height
From 83 to 103 cm
Adaptation to the user profile
Improved ergonomics
Ease of parking
New bottle
with metal protection
Bottle with metal coupling and protective casing for greater strength, safety and reliability in everyday use.
Three slots for micromotors
Quick access to multiple instruments
Up to 5 instruments, including up to 3 micromotors. Option to add a surgical micromotor. Or to combine 2 micromotors and 1 surgical micromotor.
Technical data
Height min./max.
630 mm – 830 mm
Inlet air pressure
0.45-0.8 Mpa
Supply voltage
220-240 V
Cover protection rating
IP21
Dimensions LxP
500 x 495 mm
Inlet water pressure
0.3-0.6 Mpa
Bottle capacity
2 liters
Electrical shock protection rating
Protection class I
Weight
43 kg (+ max 5 kg.)
Maximum input
400 VA
Frequency
50 / 60 Hz
